Melrose T-Top International

63-67 Corvette complete L & R Headlight parts kit #3845

63-67 Corvette complete L & R Headlight parts kit #3845

Regular price $1,043.00
Regular price Sale price $1,043.00
Sale Sold out
Shipping calculated at checkout.

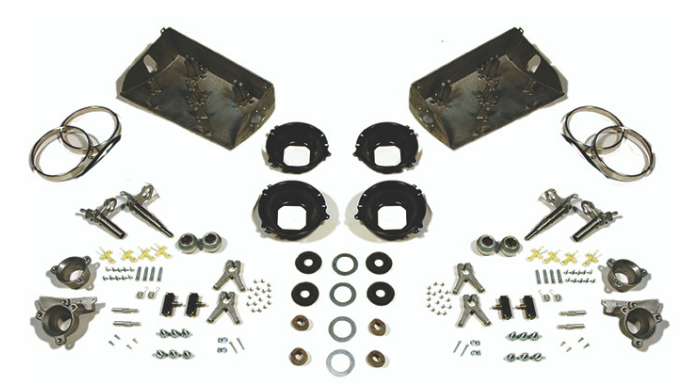

Complete Headlight Kit. This kit will fully restore your 1963-67 C2 Corvette Headlight System. Comes with every part, piece and component to completely replace your entire headlight system.  Bezels sold separately.




Kit includes the following (numbered diagram above for reference):

DESCRIPTION DIAGRAM # PART #
2 1964-67 Motor Support Stud 1 3825944
2 Spring Clip for motor support stud 2 CLIP
2 Headlight Y-Stop 3 3826291
LH inner 1963-67 Headlight Bearing Support 4 3825355
RH inner 1963-67 Headlight Bearing Support 4 3825356
2 1963-67 Headlight Bearing 5 3825940
4 Felt Seals avail w/Assembly Kit *3845AK 6 FELT SEAL
4 Rubber Seals avail w/Assembly Kit *3845AK 7 RUBBER SEAL
4 Steel Rings avail w/Assembly it *3845AK 8 STEEL RING
12 Pod Screws avail w/Assembly Kit *3845AK 9 POD SCREWS
2 1963-67 Outer Bearing Support 10 3825357
2   3/4 Shaft Collar, 1963-67 11 3845CE
LH 1963-67 Headlight Housing 12 3845787
RH 1963-67 Headlight Housing 12 3845788
16 Pivot Screws avail w/Assembly Kit *3845AK 13 SCREW
LH Outer Headlight pivot 14 3845789
RH Outer Headlight pivot 14 3845790
LH Inner Headlight pivot 15 3845791
RH inner Headlight pivot 15 3845792
4 J Nuts avail w/ assembly kit *3845AK 16 JNUTS
Headlight Adjuster Kits 18 3845K
2 Headlight A Cup,  24 3845A

2 Headlight B Cup

24 3845B
2 Headlight Retaining Ring 23 3845R
2 Bezel screw kits 26

2 1963-67 Headlight Limit Switch * 27 3845S


Parts Kit, 1963-67 (Does two Headlights)   3845AK

APPLICATIONS: 1963, 1964, 1965, 1966, 1967 C2 CORVETTE
