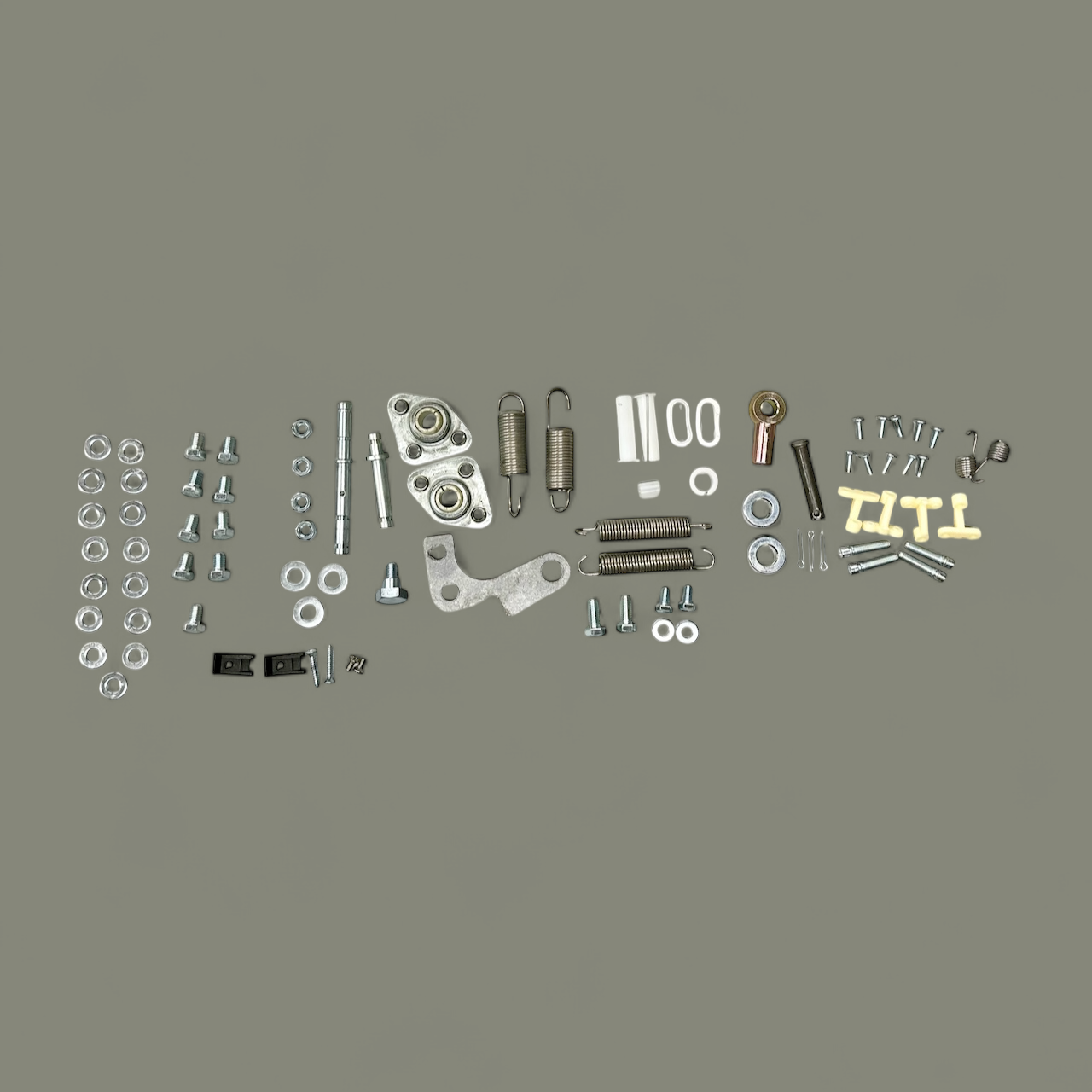

68-82 Corvette headlight repair kit #3938

1968-82 Corvette Headlight Repair Kit

     Don't waste time and money buying one piece at a time.

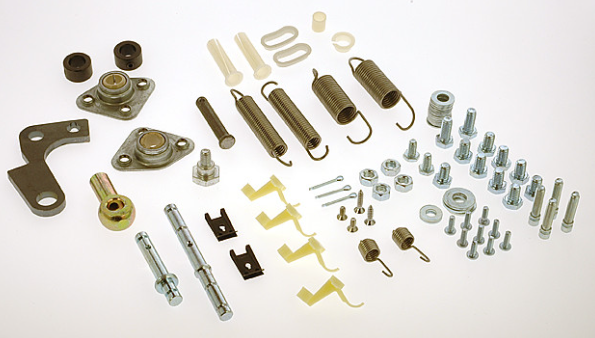

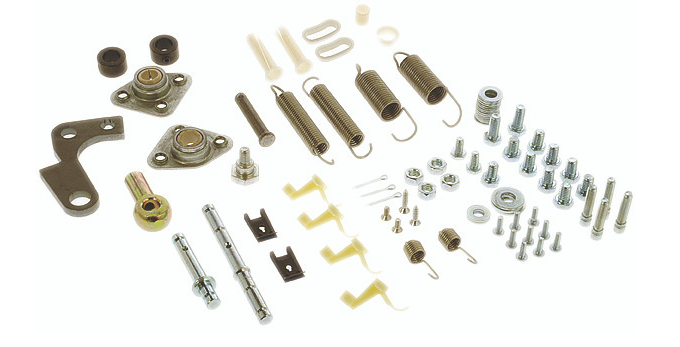

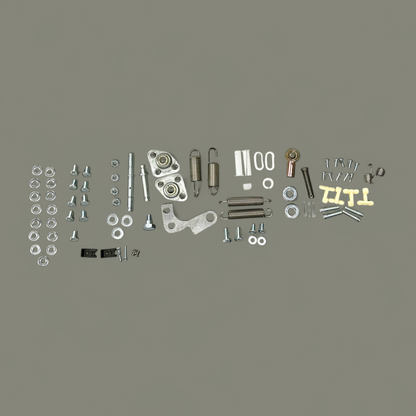

Our complete hardware kit includes every piece to totally rebuild one (left or right) headlight assembly for all 1968-82 Corvettes. 2 kits required per car.

• 2) Lock Collars
• 2) #362995 Bearing assemblies
• 1) Headlight Adjuster kit (4 Plastic Adjusters, 4 Long Adjuster Bolts, 2 Springs, 10 Machine Screws)
• 1) 3/4" Stepped Hex Bolt
• 1) Hex Bolt Bushing
• 14) 5/ 16" Washers
• 2) 1/4" Bolts and Washers for Headlight Stop
• 3) 1/16" Cotter Pins
• 4) 5/16" Nuts for Vacuum Can
• 2) #3922497 Kidney Bean Bushings for Link
• 1) Headlight Bezel Screw Kit (2 Short for Front, 2 Long for Side, 2 "J" Clips)
• 2) 5/16" Bolts for Brace Rods
• 9) 5/16" x 1/2" - 18 Bolts for "W" Bracket and Bearing Assemblies
• 2) Long Springs
• 2) Short Springs
• 3) 3/8" Washers for Cotter Pins
• 1) #395034 Front Housing Link
• 1) #395887 Clevis
• 1) #3922498 Clevis Bushing
• 1) #3926433 Long Link Pin
• 1) #3927672 Short Link Pin
• 1) #3927676 Link Pin Non-Machined for Link to "W" Bracket
• 2) #3915898 Bushing (One for Above #3927676, and One to be Trimmed to Fit for #3926433 Link Pin
